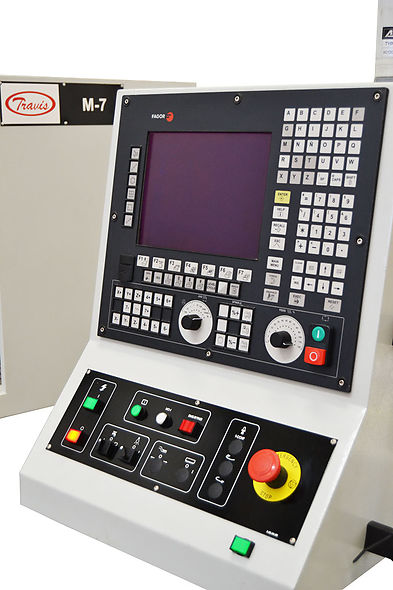

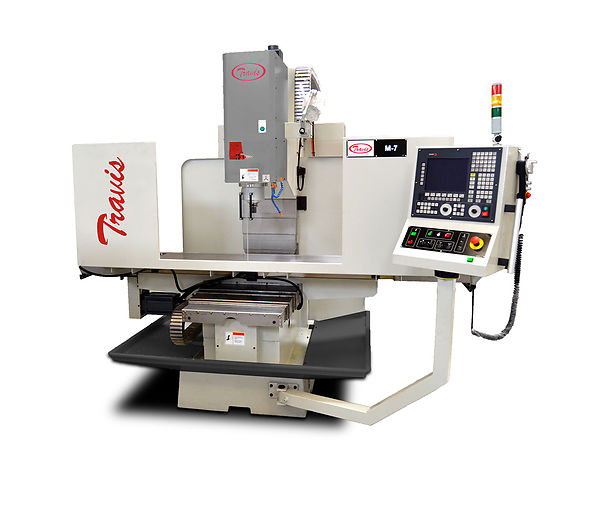

The M-7 CNC milling machine has a Fagor Control model 8055, hardened and rectified guides with turkey cover, pneumatic tool attachment, centralized and automatic lubrication, complete cooling system, table with doors and safety micro, tray to collect the taladrina, portable electronic handwheel with emergent selector and emergency mushroom, lighting lamp, output for RS-232 communication system, Ethernet output, bases and leveling screws and a set of service tools.
Technical Characteristics

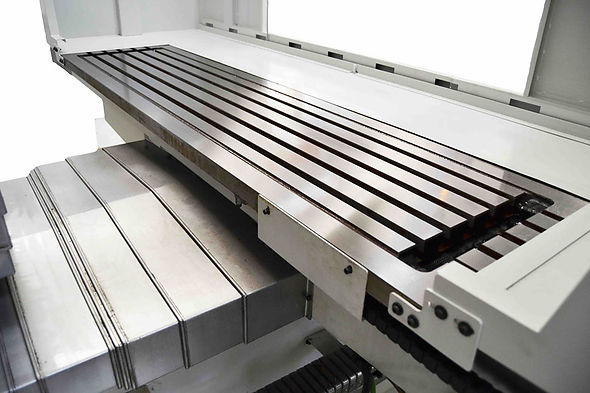

Worktable | ||
Surface | 1800 x 450 mm. | |
---|---|---|
Number of slots and measures | 5 - 16 x 60 mm. | |
Maximum load over table | 1300 Kgs. | |
Travels & distances | ||
Longitudinal travel (X) | 1500 mm. | |
Transversal travel (Y) | 650 mm. | |
Vertical travel (Z) | 620 mm. | |
Distance spindle nose to table | 100 / 720 mm. | |
Distance spindle nose to column | 585 mm. | |

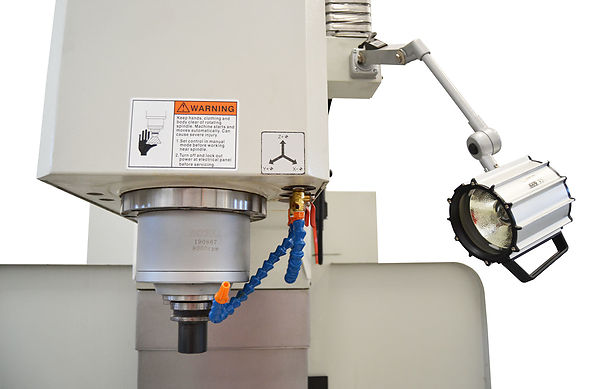

Headstock | ||
Spindle bore taper: | BT-40 | |
Tool holding system: | Pneumatic | |
Speed range | 1 / 6000 rpm. | |
Spindle nose: | 70 | |
Ballscrews | ||
Ballscrews diameter X,Z | 40 mm. | |
Rapid feedrates X,Y | 18000 mm/min | |
Rapid feedrates Z | 10000 mm/min | |
Machining feedrates X,Y,Z | 5000 mm/min | |
Power | ||
Main motor (cont./30min.) | 15 HP | |
Servomotors | 14.8 Nm | |
Coolant pump motor | 0.25 HP | |
Weight & dimensions | ||
Area occupied | 2800 x 2150 x 2560 mm. | |
Weight | 4300 Kgs. | |
Brand: | Travis |
