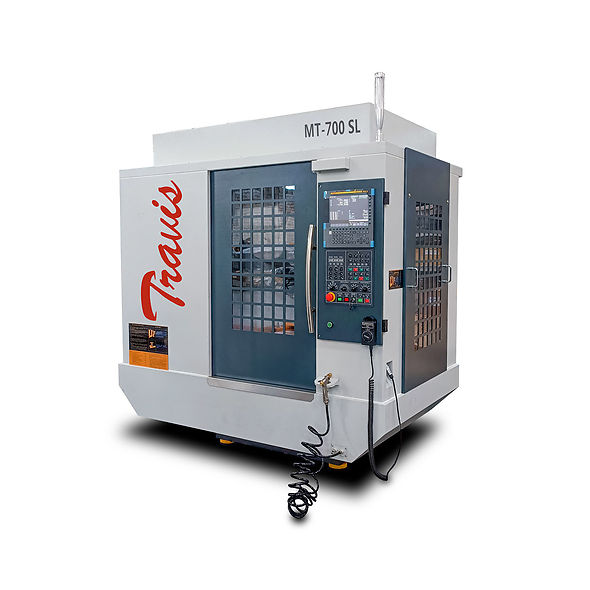

MT-700SL

Perçage et taraudage à grande vitesse

Précédent Suivant
Description
Ref. MT-700SL
MT-700SL
Demande d'information complémentaire

Caractéristiques techniques

Contrôle numérique
Modèle Fanuc 0i-MF Plus
Table de travail
Surface 800 x 420 mm.
Nombre de rainures et mesures 3 - 14 x 125 mm.
Poids admissible sur la table 300 Kgs.
Courses et distances
Course longitudinal X 700 mm.
Course transversal Y 400 mm.
Course vertical Z 350 mm.
Distance nez de broche / table 145 - 495 mm.
Distance broche / colonne 420 mm.
Broche
Cône de broche BT-30
Système d'attachement du cône Pneumatique
Gamme de vitesses 100 - 20.000 rpm.
Vitesse d'enfilage 6.000 rpm.
Puissance
Moteur principal (Inter./Cont.) 12 / 5 HP
Avances
Avances rapides - X, Y, Z 48 m/min.
Avances de travail - X, Y, Z 15 m/min.
Changeur d’outils
Nombre d’outils 16
Longueur d'outil 250 mm.
Poids maximum de l’outil 3 Kgs.
Dimensions et poids
Poids 2500 Kg.
Dimensions 2600 x 2100 x 2900 mm.
Marque: Travis
Catálogo General Travis España (2022).pdf
Travis CNC Produits
Voir notre catalogue

MM-4

Le Mini Mill 4 est un centre d'usinage CNC vertical compact et polyvalent qui comprend un contrôle numérique Fagor 8055, des guides linéaires, un filetage rigide, un graissage automatique et centralisé, une manivelle électronique ou une sortie RS-232 entre autres. Il fournit au client une production élevée à un coût très faible. C'est une machine-outil compacte pour le travail dans tous les types de...
MM-4
