TT-4S

TOUR CNC

Précédent
Description

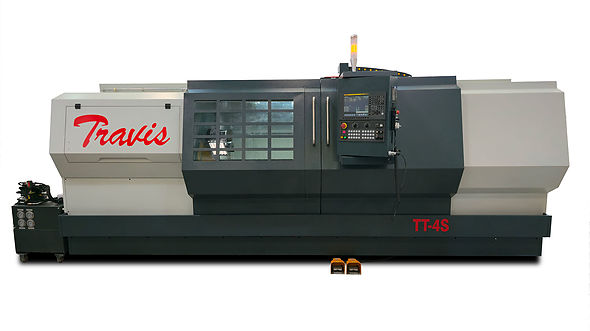

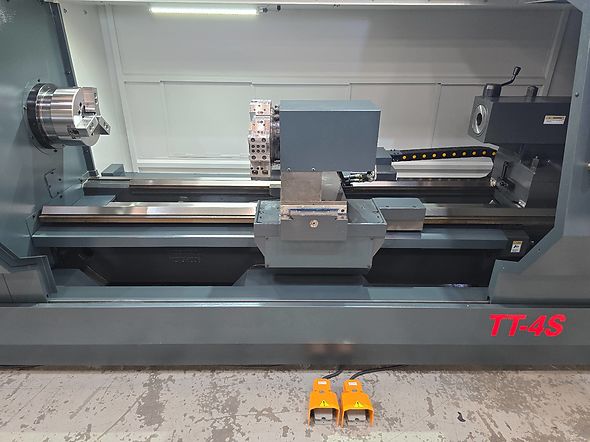

Ref. Torno CNC TT-4S
TT-4S

ÉQUIPEMENT STANDARD

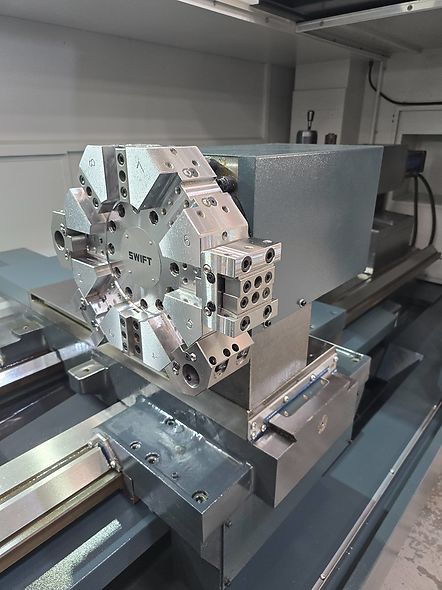

• Tourelle hydraulique bidirectionnelle à 8 positions

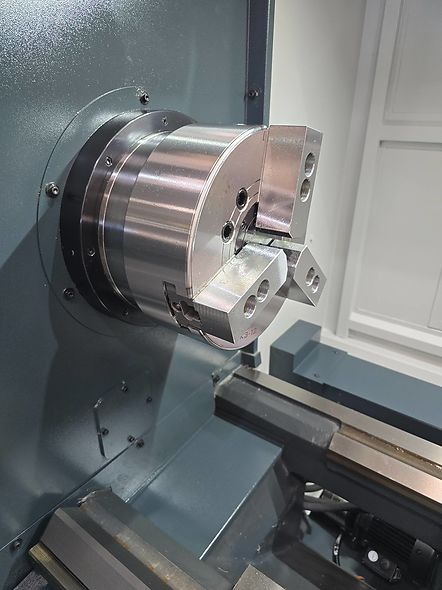

• Mandrin hydraulique à 3 mors – 380 mm

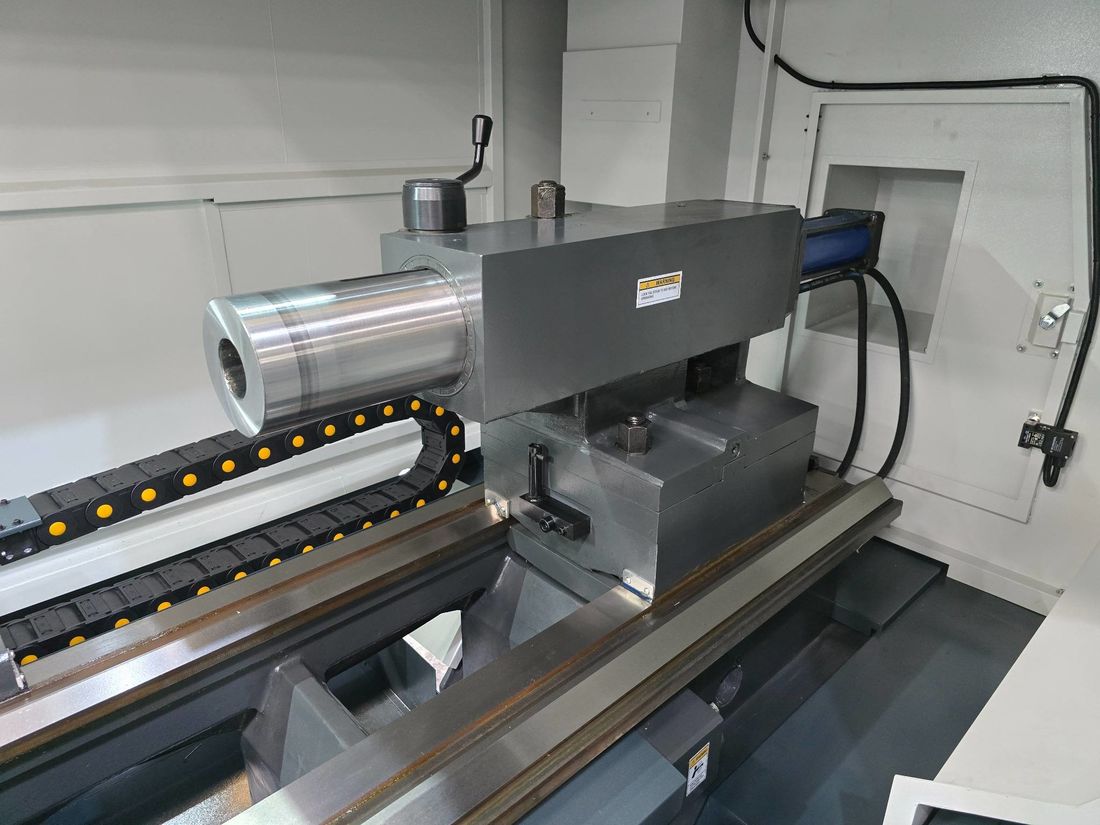

• Contre-pointe hydraulique
• Centrale hydraulique
• Boîte de vitesses à 3 rapports
• Lunette fixe manuelle (manual steady rest)
• Lubrification centralisée et automatique
• Système complet de refroidissement
• Échangeur thermique dans l’armoire électrique
• Carénage intégral
• Volant électronique portable avec sélecteur d’axe et bouton d’arrêt d’urgence
• Balise de signalisation
• Système d’éclairage de la zone de travail
• Jeu d’outils de nivellement
• Jeu d’outils de maintenance

• Option : Mandrin manuel à 4 mors de 500 mm (capacité de barre ø 130 mm)

Demande d'information complémentaire

Caractéristiques techniques

Contrôle numérique

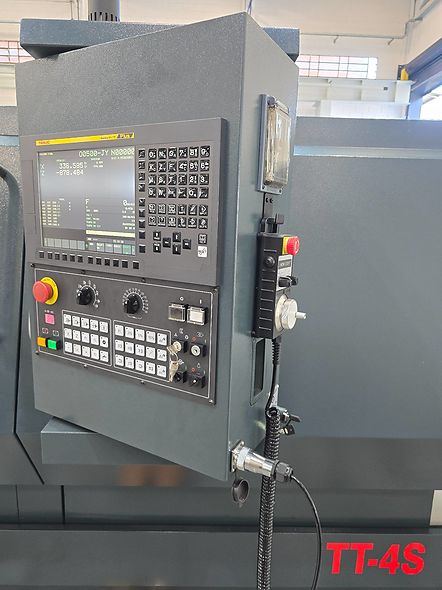

Modèle Fanuc 0i TF Plus 10"
Broche
Gamme de vitesses 180 / 300 / 1200 rpm.
Nez de broche A2-11
Passage de barre 85 mm.
Diametre alésage de broche 130 mm.
Tourelle hydraulique
Nombre de postes 8
Diamètre extérieur outil 25 x 25 mm.
Capacité
Distance entre centres 2000 mm.
Diamètre admis sur le banc 800 mm.
Diamètre admis sur le charriot transversal 500 mm.
Diamètre mandrin 12" / 305 mm.
Hauteur du centre 400 mm.
Courses
Course longitudinale - axe Z 1720 mm.
Course transversale - axe X 420 mm.
Puissance
Moteur principal 20 HP
Avances
Avance rapide axe Z 12 m/min.
Avance rapide axe X 6 m/min.
Contrepointe
Cône du fourreau Nº6
Diamètre du fourreau 150 mm.
Course du fourreau 250 mm.
Dimensions et poids
Poids 5200 Kg.
Dimensions 4807 x 2040 x 1855 mm.
Marque: Travis
