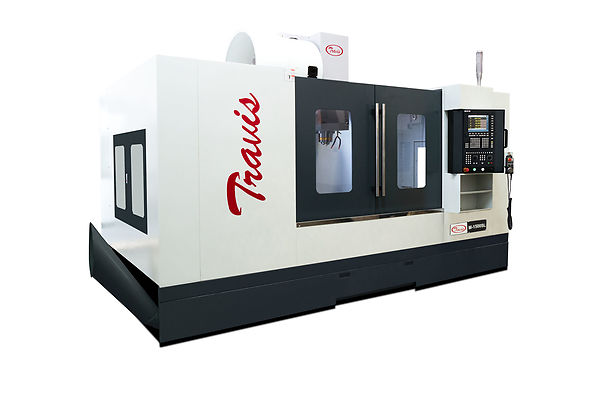

CNC Machining Center

Ref. M-1500SL

Technical Characteristics

Surface 1700 x 600 mm.
Number of slots and measures 5 - 18 x 100 mm.
Maximum load over table 1000 Kgs.
Travels & distances
Longitudinal travel (X) 1500 mm.
Transversal travel (Y) 680 mm.
Vertical travel (Z) 870 mm.
Distance spindle nose to table 100 / 970 mm.
Distance spindle nose to column 700 mm.
Spindle bore taper: BT-40
Tool holding system: Pneumatic
Speed range 1 - 10000 rpm.
Tool changer
Number of tools: 24
Type Random
Maximum tool weight 8 Kgs.
Tool size 300 mm.
Ballscrews diameter X,Y,Z 40 mm.
Rapid feedrates X,Y 25000 mm/min
Rapid feedrates Z 25000 mm/min
Machining feedrates X,Y,Z 1 - 8000 mm/min
Main motor 20 / 30 HP
Servomotors 14.8 Nm
Coolant pump motor 0.75 HP
Weight & dimensions
Area occupied 4100 x 2880 mm.
Weight 8000 Kgs.
Brand: Travis
Travis CNC Products
See our catalogue


The M-800SL is a very reliable numerical control machine tool. This machining center is the first of our standard line of carriage. A competent machine for precision work, as well as useful for chain production, in a wide variety of materials. An efficient solution for all types of jobs.

It has guides with Turcite-B cover on the contact surface. This machining center also has high quality elements with angular...
