Description

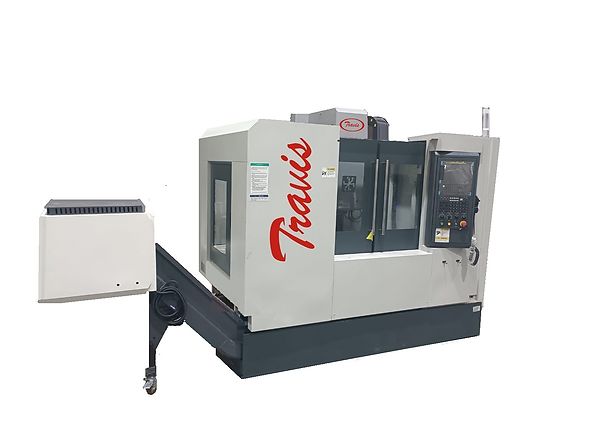

Ref. M-800SL
STANDARD EQUIPMENT
• Linear guideways
• Pneumatic tool clamping system
• Rigid tapping
• Electrical cabinet with cooling system
• Automatic centralized lubrication system
• Complete coolant system
• Screw type chip conveyor
• Ready for coolant through spindle
• Full machine enclosure
• Ready to use with 4th axis
• Portable MPG handwheel
• Working status light
• Lighting system
• USB port
• Ethernet
• Levelling screw and plates
• Tool box
OPTIONAL EQUIPMENT
• Pump high pressure 20/bar
• Metrol Tool setter T24E-13 (Tool height)
• 12000 rpm with oil cooler
• Chain type chip conveyor
• 4th axis - Rotary table
• 4th & 5th axis - Rotary table
Technical Characteristics
| Numerical control | ||
| Brand and model | Fagor 8060 / Fanuc 0i-MF Plus | |
|---|---|---|
| Worktable | ||
| Surface | 960 x 460 mm. | |
| Number of slots and measures | 3 - 18 x 100 mm. | |
| Maximum load over table | 600 Kgs. | |
| Travels & distances | ||
| Longitudinal travel (X) | 850 mm. | |
| Transversal travel (Y) | 470 mm. | |
| Vertical travel (Z) | 490 mm. | |
| Distance spindle nose to table | 100 - 600 mm. | |
| Distance spindle nose to column | 520 mm. | |
| Headstock | ||
| Spindle taper | BT-40 | |
| Tool holding system: | Pneumatic | |
| Speed range | 10.000 Fagor / 12.000 Fanuc rpm. | |
| Power | ||
| Main motor (Inter./Cont.) | 15 / 10 HP | |
| Coolant pump motor | 0,5 HP | |
| Feedrates | ||
| Machining feedrates - X,Y,Z axis | 30/30/24 m/min. | |
| Cutting feed rate - X,Y,Z axis | 10 m/min. | |
| Tool changer | ||
| Number of tools: | 24 | |
| Type | Random | |
| Tool diameter | 80 mm. | |
| Tool length | 250 mm. | |
| Maximum tool weight | 8 Kgs. | |
| Weight & dimensions | ||
| Weight | 3200 Kg. | |
| Dimensions | 2700 x 2120 x 2720 mm. | |
| Brand: | Travis | |
