4VS

Turret milling machine

Previous Next

Description

Ref. 4VS

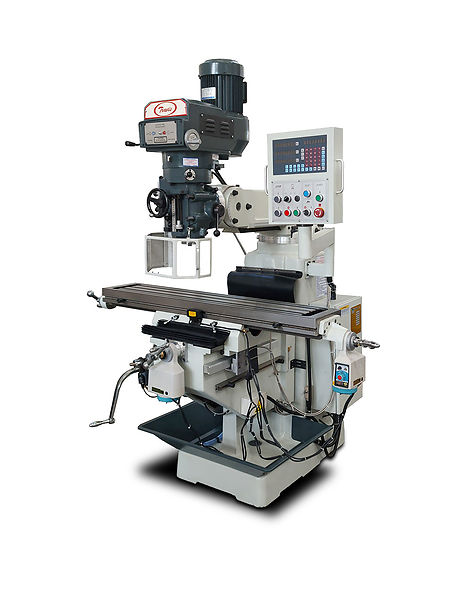

Travis 4VS turret milling machine with tempered and rectified guides with turcite-b coating, rotation of the head left and right at 90º, complete cooling system, chip collecting tray, lighting lamp, service tool kit, automatic feed and fast on X / Y axes, with approximation of the motorized table, automatic advance of the rod, square guides on Y / Z axes, tilt front / rear of 45 ° and centralized lubrication as standard.

The 4VS is an efficient and cheap conventional milling machine, ideal for all types of jobs. Contact us and we will clarify any of the doubts you have. Discover today the optimal option for your business.

Ask for Information

Technical Characteristics

Worktable
Surface	254 x 1370 mm.
Number of slots and measures	3 - 16 mm.
Maximum load over table	340 Kgs.
Travels & distances
Longitudinal travel - X axis	850 mm.
Transversal travel - Y axis	400 mm.
Vertical travel - Z axis	370 mm.
Distance from spindle nose to table	70 - 440 mm.
Distance from spindle center to column	214 - 715 mm.
Headstock
Spindle taper	ISO 40
Speed range	70-450-3600 (60hz) rpm.
Spindle bore diameter	100 mm.
Power
Main motor	5 HP
Weight & dimensions
Weight	1600 Kg.
Dimensions (L x W x H)	1610 x 1930 x 2240 mm.
Brand:	Travis
