Description

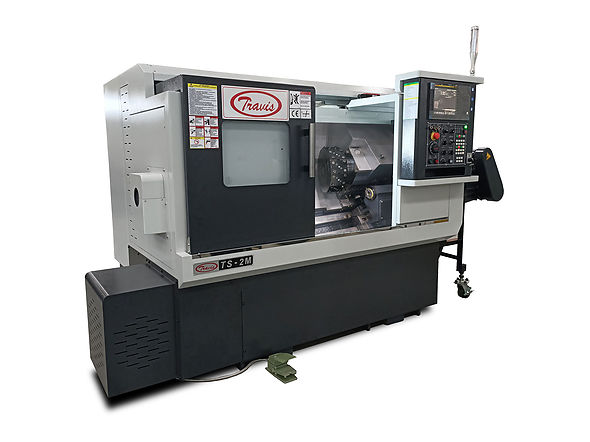

Ref. TS-2M
STANDARD EQUIPMENT
• Linear guideways
• Hydraulic turret
• Power turret
• Hydraulic chuck
• Hydraulic tailstock
• Working status light
• Heat exchanger for electric cabinet
• Automatic centralized lubrication system
• Complete coolant system
• Belt type chip conveyor and chip cart (right discharge)
• USB port
• Lighting system
• Pedal switch chuck open & close
• Levelling screw and plates
• Tool box
Technical Characteristics
| Numerical control | ||
| Model | Fanuc 0i-TF Plus 10" | |
|---|---|---|
| Headstock | ||
| Speed range | 4500 rpm. | |
| Spindle nose: | A2-6 | |
| Bar capacity | 52 mm. | |
| Hidraulic turret | ||
| Working positions | 12 | |
| Max.square of external tool | 25 mm. | |
| Max.diameter of internal tool | 32 mm. | |
| Capacity | ||
| Swing over bed | 530 mm. | |
| Max. turning length | 450 mm. | |
| Max. turning diameter | 360 mm. | |
| Hidraulic chuck diameter | 210 mm. | |
| Power | ||
| Main motor (Inter./Cont.) | 20 / 15 HP | |
| Travels | ||
| Longitudinal travel - Z axis | 450 mm. | |
| Transversal travel - X axis | 180 + 20 mm. | |
| Feedrates | ||
| Feedrates Z axis | 24 m/min. | |
| Feddrates X axis | 24 m/min. | |
| Hidraulic tailstock | ||
| Quill taper size | MT4 | |
| Quill diameter | 70 mm. | |
| Quill travel | 110 | |
| Tailstock travel | 425 mm. | |
| Weight & dimensions | ||
| Weight | 3500 Kg. | |
| Dimensions (L x W x H) | 3320 x 1675 x 1730 mm. | |
| Brand: | Travis | |
