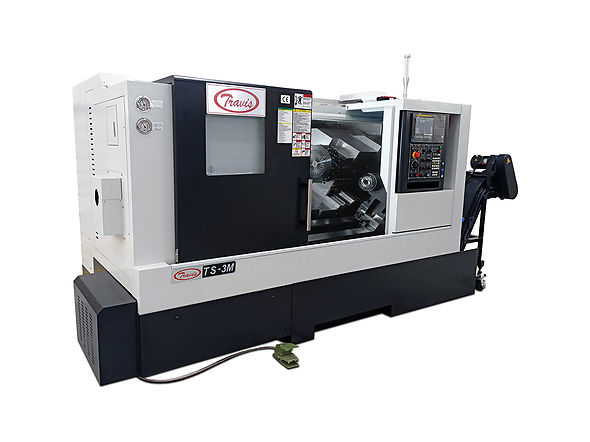

TS-3M

CNC slant bed lathe with power turret

Previous
Description
Ref. TS-3M
TS-3M

STANDARD EQUIPMENT

• Linear guideways
• Power turret
• Hydraulic turret
• Hydraulic chuck
• Hydraulic tailstock
• Working status light
• Heat exchanger for electric cabinet
• Automatic centralized lubrication system
• Complete coolant system
• Belt type chip conveyor and chip cart (right discharge) • USB port
• Lighting system
• Pedal switch chuck open & close
• Levelling screw and plates
• Tool box

Ask for Information

Technical Characteristics

Numerical control
Model Fanuc 0i-TF Plus 10"
Headstock
Speed range 3500 rpm.
Spindle nose: A2-8
Bar capacity 75 mm.

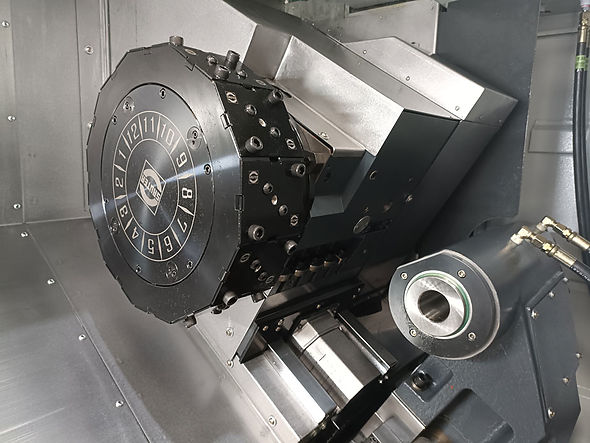

Hidraulic turret
Working positions 12
Max.square of internal tool 25 mm.
Max.diameter of internal tool 40 mm.
Capacity
Swing over bed 530 mm.
Max. turning length 700 mm.
Max. turning diameter 360 mm.

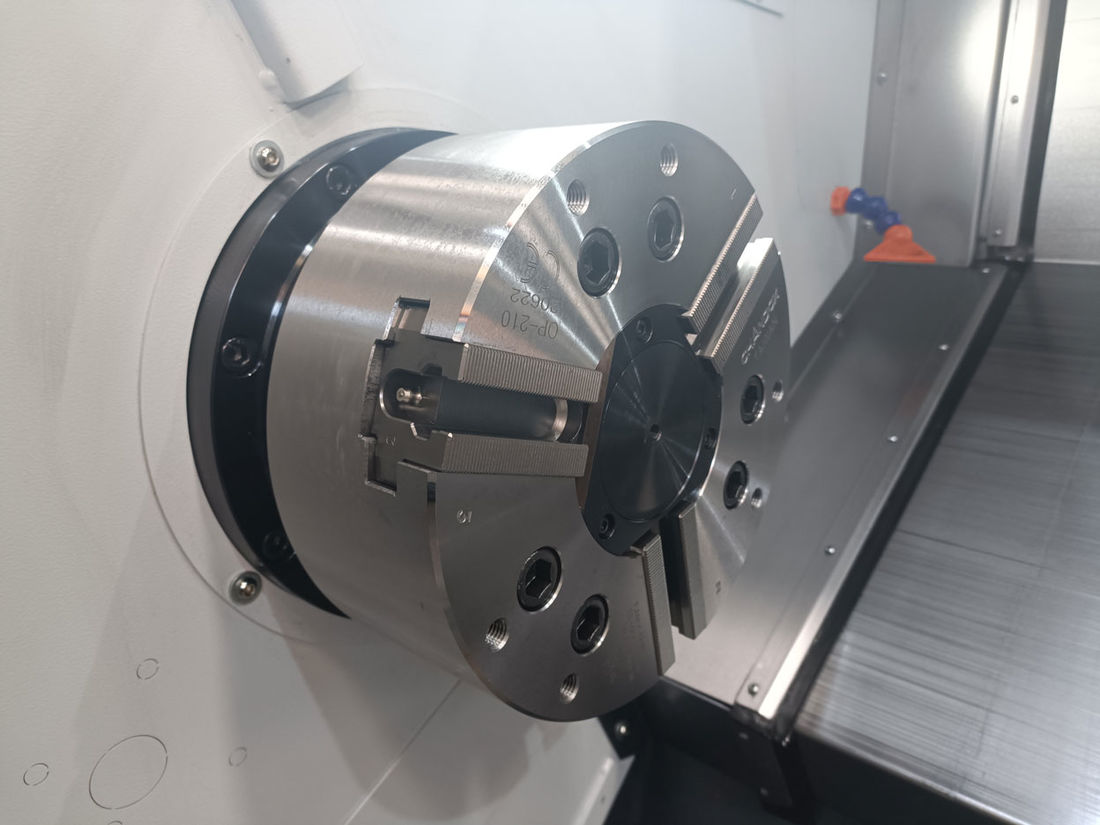

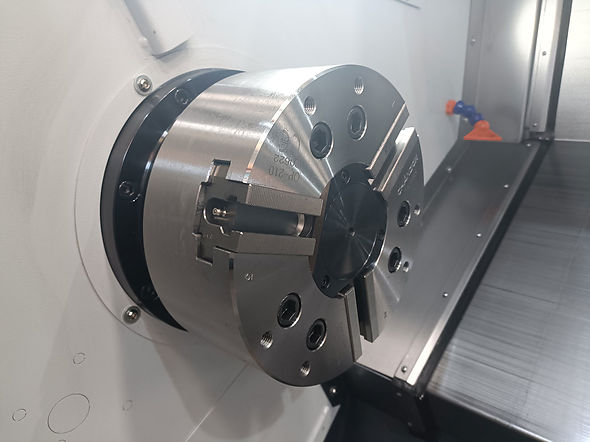

Hidraulic chuck diameter 250 mm.
Power
Main motor (Inter./Cont.) 25 / 20 HP
Travels
Longitudinal travel - Z axis 700 mm.
Transversal travel - X axis 180 + 30 mm.
Feedrates
Feedrates Z axis 20 m/min.
Feddrates X axis 20 m/min.
Hidraulic tailstock
Quill taper size MT5
Quill diameter 85 mm.
Quill travel 150
Tailstock travel 675 mm.
Weight & dimensions
Weight 4400 Kg.
Dimensions (L x W x H) 3850 x 1700 x 1830 mm.
Brand: Travis
